RFID Readers

Depending on the application, RFID readers
and writers can be used not only for contactless
reading of RFID transponders, but also for direct
writing and encoding.

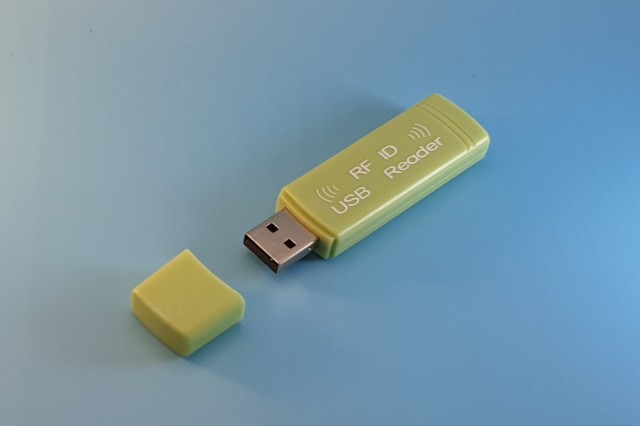

usb-ic2

USB EM/MF/ICODE

Simple RFID "plug and play" reader in the form of a USB stick. The read RFID data is treated like keyboard input (HDI) on the computer and can be edited immediately in Word, Excel or other programs.

  • Size: 70mm x 20mm x 9.8mm
  • Interface: USB1.1 HID Keyboard Device
  • Power supply: 5.0VDC+0.5V via USB connection
  • Speed: USB 1.1 / 1.5Mbps
  • Software: not required, Plug and Play
  • Funktion: chip ID reading only
  • Compatibility
    1. ISO 14443 A: NXP Mifare S50 / S70 / Ultralight / Desfire
    2. ISO 15693: NXP I-Code SLI / TI Tag-It / Infineon SRF55V
    3. 125kHz: EM-Marin EM4200 / TK4100

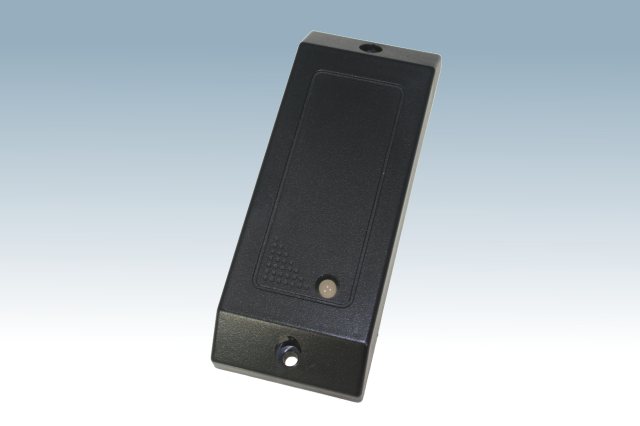

wm9918

WM9918

RFID reader in a modest design for fixed mounting on walls. The ideal solution for applications such as time and attendance or access control. ​

  • Size: 114mm x 46mm x 20mm
  • Interface: RS485/Wiegand232
  • 125 kHz
