Industrial Transponders

An RFID medium in 125 kHz (LF), 13.56 MHz (HF)
and 868 MHz (UHF) and in a combination of these
frequencies in the form of a key fob for access control
systems or time and attendance systems, for example,
optionally with logo printing and/or numbering.

cbt813new

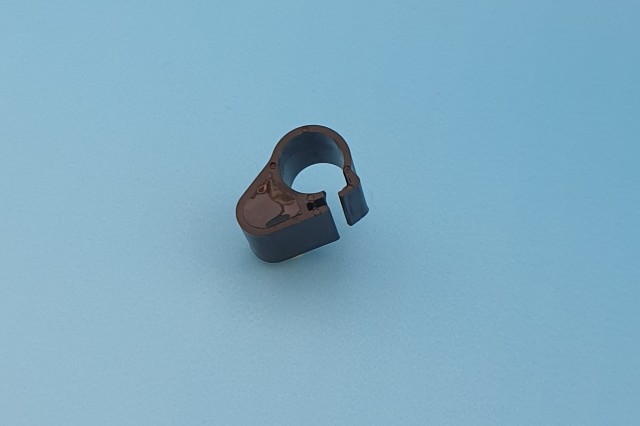

CBT813

RFID cable clip for easy and quick identification of cables up to a thickness of 8 mm, ideally suited for cable management.

  • Diameter (mm): 8
  • Height (mm): 13
  • Material: nylon
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: black
  • Option: laser engraving
  • available technologies
cbtdatasheet

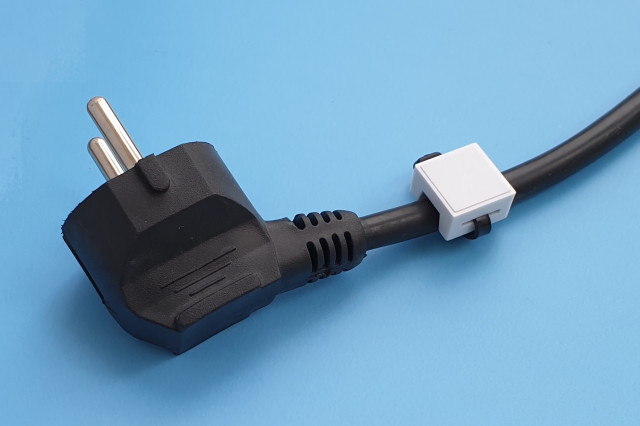

CBT1616

CBT1616 is an ideal solution for all indoor, outdoor and harsh cable tie applications. This
transponder is best suited for cable sorting, tracing and identification. It is useful and good for
equipment maintenance, repair, rental etc.

  • Size (mm): 16 x 16 x 9
  • Cabel tunnel (mm): 10
  • Material: ABS
  • Operating temperature (°C): -20 - 85
  • Frequency: 125 kHz, 13.56 MHz, 868 MHz
  • Color: white or black
  • Option: laser engraving
  • available technologies
cbt1718neu

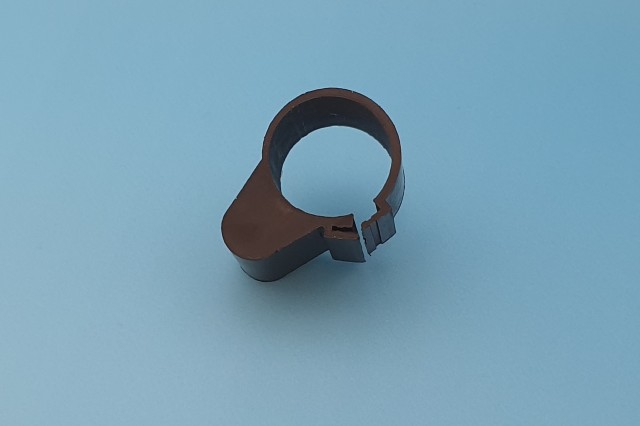

CBT1718

RFID cable clip for easy and quick identification of cables up to 17 mm thick, ideal for cable management.

  • Diameter (mm): 17
  • Height (mm): 18
  • Material: nylon
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: black
  • Option: laser engraving
  • available technologies
cbtrot

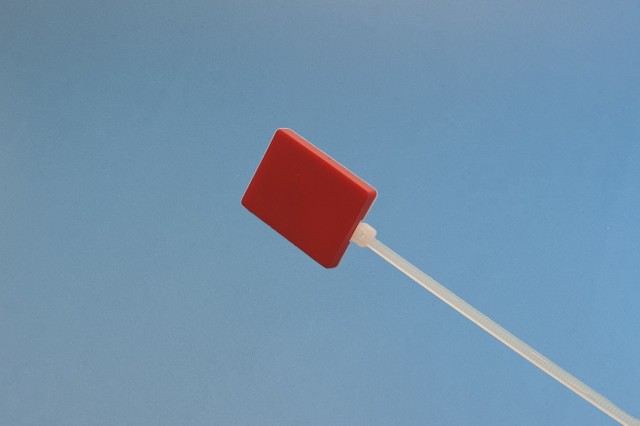

CBT2025

RFID cable transponder with a 7cm cable tie that cannot be reused after disassembly. With this solution you ensure that the transponder cannot be accidentally mounted on another component after use.

  • Size (mm): 29 x 22 x 4
  • Cable length (mm): 70
  • Material: nylon
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: diverse
  • Option: laser engraving
  • available technologies
cbtgelb

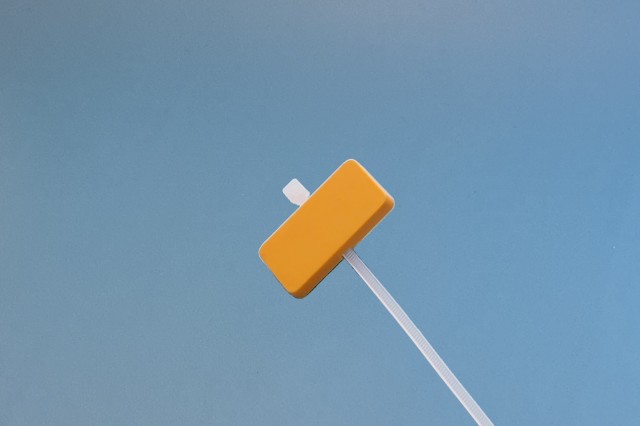

CBT3015

RFID cable transponder with a 15cm cable tie that cannot be reused after disassembly. With this solution you ensure that the transponder cannot be accidentally mounted on another component after use.

  • Size (mm): 32 x 17 x 4
  • Cable length (mm): 175
  • Material: nylon
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: diverse
  • Option: laser engraving
  • available technologies
cbt3018

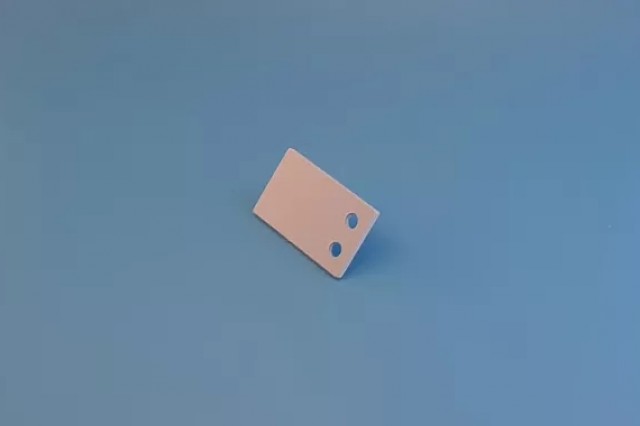

CBT3018

The small transponder can be used with all standard cable ties up to a thickness of 3.9mm and is reusable after disassembly.

  • Size (mm): 30 x 18 x 2
  • Material: PVC
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: white
  • Option: laser engraving, digital printing
  • available technologies
cbt4330

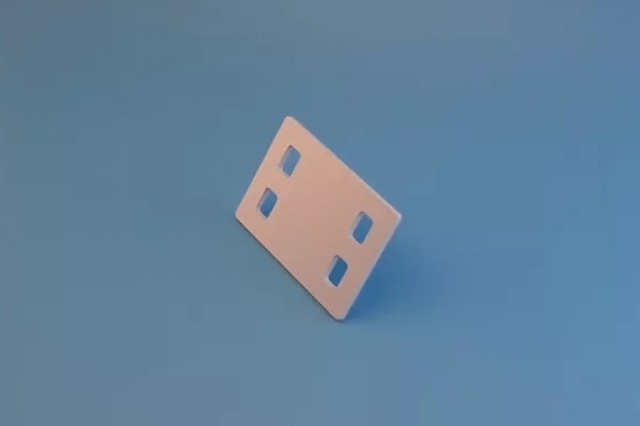

CBT4330

The small transponder can be used with all standard cable ties up to a thickness of 6.9mm and is reusable after disassembly.

  • Size (mm): 43 x 29 x 2
  • Material: PVC
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: white
  • Option: laser engraving, digital printing
  • available technologies
cable1

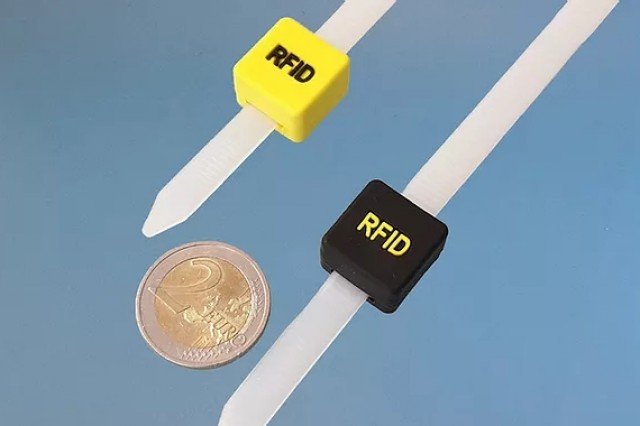

Tag1818

The ideal cable tie solution for outdoors or in harsh environments. The transponder is shock-absorbing, waterproof and UV-resistant. The tunnel for the cable tie as well as the housing can be freely determined by a small surcharge.

  • Size (mm): 18 x 18 x 12
  • Cabel tunnel (mm): 10
  • Material: PVC
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: diverse
  • Option: laser engraving
  • available technologies
nt

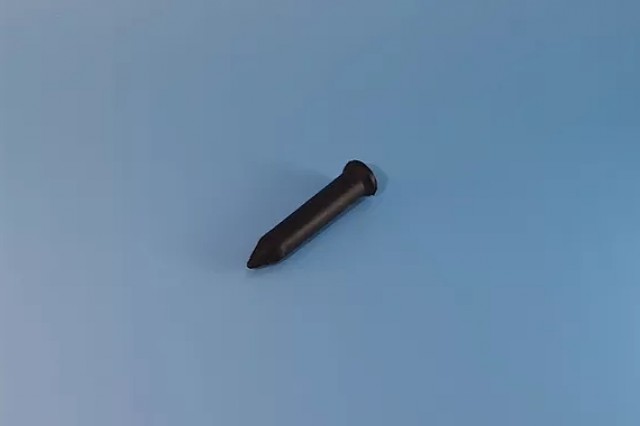

NT

Resistant to moisture and temperature fluctuations, the ideal transponder for forestry.

  • Size (mm): 6 x 37
  • Head diameter (mm): 8
  • Material: POM
  • Operating temperature (°C): -20 -70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: black
  • available technologies
cyt

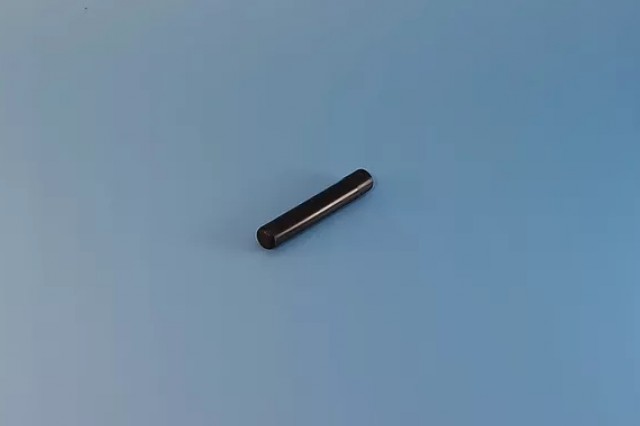

CYT

The alternative to the glass transponder, robust and waterproof. Thanks to the magnetic core antenna, reading of a fully embedded transponder is also guaranteed.

  • Size (mm): 5 x 30
  • Material: POM
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: black
  • available technologies
coco

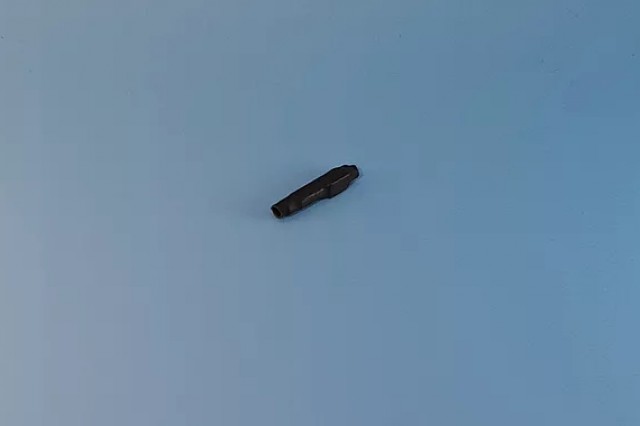

Coco

The ideal solution if the transponder is to be embedded but does not require additional protection by an extra housing.

  • Size (mm): 5 x 10
  • Material: PP
  • Operating temperature (°C): -20 - 70
  • Frequency: 125 kHz, 13.56 MHz
  • Color: black
  • available technologies
omt7032

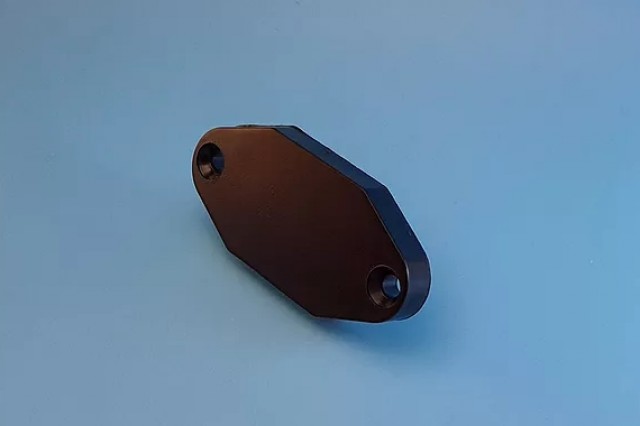

OMT7032

Robust housing with two holes for fixing by screw or rivet. Suitable for applications on metal surfaces. Optional filling with epoxy is possible to ensure water resistance.

  • Size (mm): 70 x 33 x 9
  • Material: ABS
  • Operating temperature (°C): -20 - 85
  • Frequency: 125 kHz, 13.56 MHz, UHF
  • Color: black
  • Option: laser engraving, pad printing
  • available technologies
tagabs52

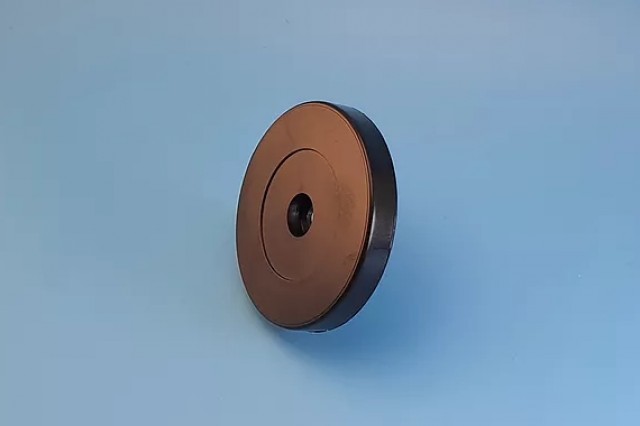

OMT52

Robust housing with a hole for fixing by screw or rivet. Suitable for applications on metal surfaces. The housing is filled with epoxy and thus provides the IC with additional protection against water.

  • Size (mm): 52 x 8
  • Hole diameter (mm): 5
  • Material: ABS
  • Operating temperature (°C): -20 - 85
  • Frequency: 125 kHz, 13.56 MHz, UHF
  • Color: black, white
  • Option: laser engraving, pad printing
  • available technologies
omt3030

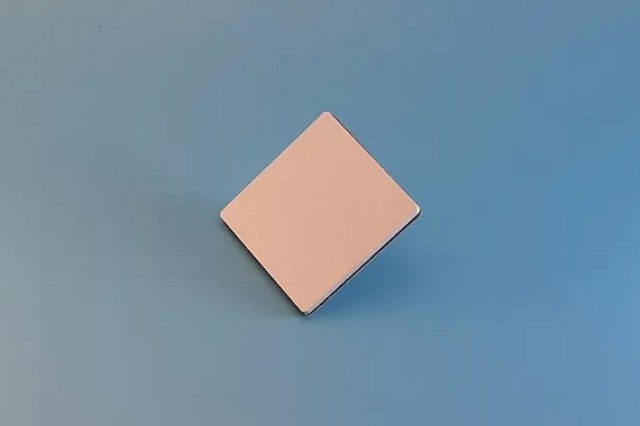

OMT3030

Suitable for use on metal surfaces. Available in various shapes, self-adhesive or with a hole for fastening with a screw.

  • Size (mm): 30 x 30 x 3
  • Material: PVC
  • Operating temperature (°C): -20 -70
  • Frequency: 125 kHz, 13.56 MHz, UHF
  • Color: white
  • Option: laser engraving, pad printing
  • available technologies
uhflang

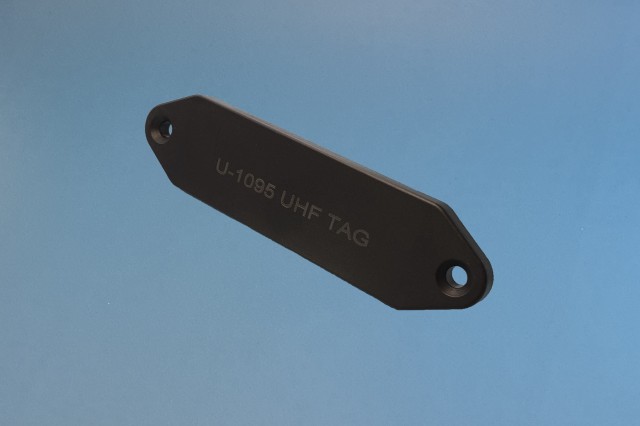

UHF Tag

UHF transponder with robust housing, suitable for warehouse management or for marking pallets or containers.

  • Size (mm): 119 x 30 x 6
  • Material: ABS
  • Operating temperature (°C): -20 - 85
  • Frequency: 125 kHz, 13.56 MHz, UHF
  • Color: black
  • Option: laser engraving
  • available technologies
uhfomt

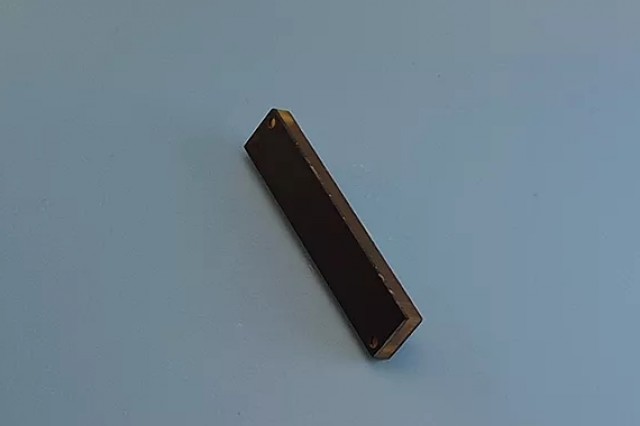

UHF OMT

Highly robust UHF transponder that offers full functionality on metal and is specially designed for applications where very high temperatures occur.

  • Size (mm): 70 x 10 x 2
  • Material: fiberglass FR4
  • Operating temperature (°C): -20 - 200
  • Frequency: UHF
  • Color: black
  • Option: laser engraving
  • available technologies
uhfsoft

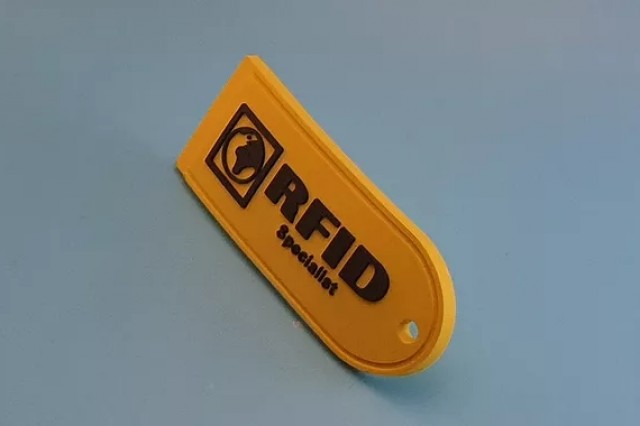

Hangtag

Soft and flexible UHF hanging transponder that can also be used as a key fob. A customized design can be realized by using the injection molding tool for a small extra charge.

  • Size (mm): 65 x 25 x 3
  • Material: PVC
  • Operating temperature (°C): -20 - 70
  • Frequency: UHF
  • Color: diverse
  • available technologies
pvcneu

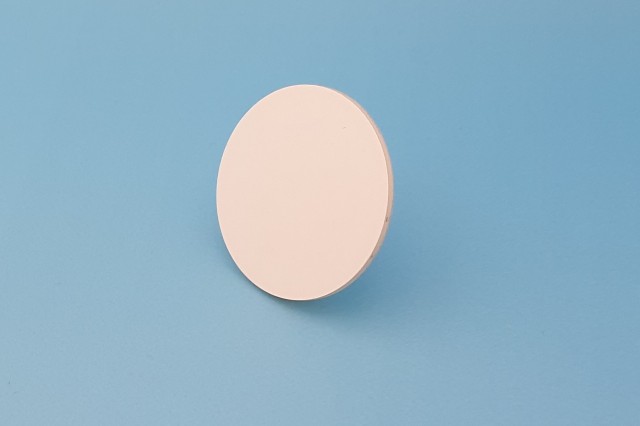

PVC Tag

The cost-effective yet robust solution for identifying and marking items and objects.

  • Diameter (mm): 18, 20, 25, 30, 40
  • Thickness (mm): 1.5
  • Material: PVC
  • Operating temperature (°C): -20 - 70
  • Color: white
  • Frequency: 125 kHz, 13.56 MHz
  • available technologies
tagpetrd

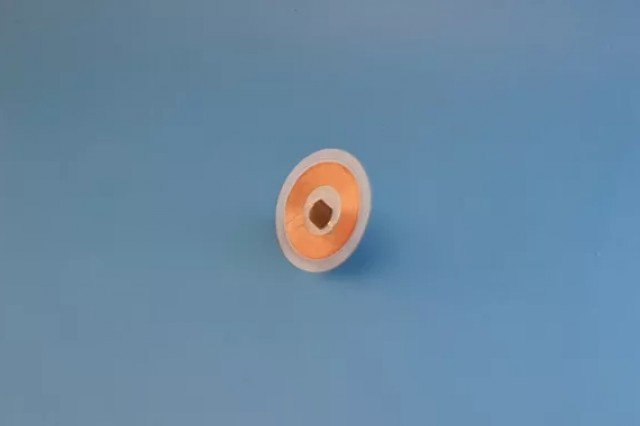

Clear Tag

Transparent and extra flat PVC transponders for identification and marking of objects that require a low installation height.

  • Diameter (mm): 18, 20, 25, 30, 40
  • Thickness (mm): 0.8
  • Material: PVC, PET
  • Operating temperatur (°C): -20 - 50
  • Color: white, transparent
  • Frequency: 125 kHz, 13.56 MHz
  • available Technologies
eunitrd

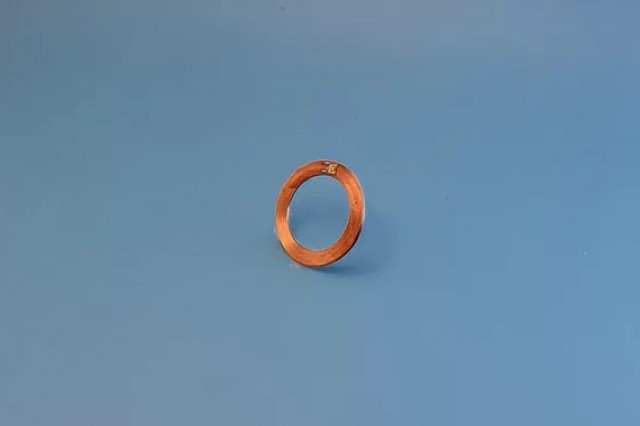

E-Unit

The core of any transponder, RFID chip with antenna without additional packaging. Ideal for integration into own production processes.

  • Size: according to customer requirements
  • Form: round, square
  • Antenna: frequency individually adjustable
  • available technologies
